    RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers

    Ask Lasest Price
    Brand Name : Uchi
    Model Number : RD16
    Certification : SMC
    Price : Negotiable
    Payment Terms : T/T,paypal, Western Union,MoneyGram
    Supply Ability : 50000000pcs per Month
    • Product Details
    • Company Profile

    RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers

    RD16 Metal Shaft Rotary Potentiometer RV16 Potentiometer CTR Precision Potentiometers
    RD16 Potentiometer With Switch Main Specifications

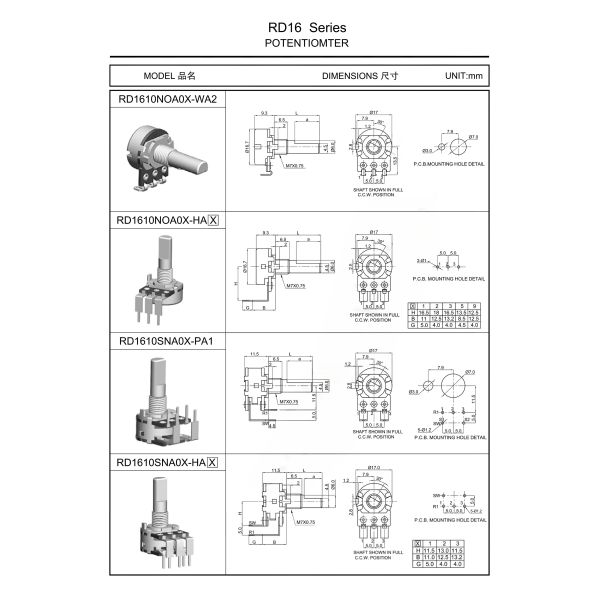

    Dimensions
    17mm
    Total rotational angle
    300°±10°
    Rated power
    0.05W
    eMaximum operating voltage
    AC 50V/ DC 20V
    Operating temperature
    -10℃ ~70℃
    Rotational life
    10,000 Min
    Applications
    Professional audio, home appliances, lighting control, radios and other related electronic devices.
    Functions
    Smooth rotation with reliable performance;
    Available in many different variants.
    Functions
    It mainly plays the role of adjusting volume, voltage regulation, temperature regulation, speed regulation, etc., and the switch function plays the role of power on and off.
    Potentiometer With Switch Model
    RD16 series
    Total rotational angle
    300°±10°
    Maximum operating voltage
    AC 50V/ DC 20V
    Working temperature
    -10℃ ~70℃
    Resistance Taper
    A/B/C
    Sliding Life
    10,000 cycles Min

    RD16 Potentiometer With Switch Specifications
    One,MECHANICAL CHARACTERISTIC
    1. Rotational Torque: 20~200gf.cm 2. Total Rotational Angle: 300°±10° 3. Shaft Stop Strength: ≥3.0Kgf.cm 4. Shaft Wobble (mm p-p): Within(0.7xL/20)mm p-p

    Two,ELECTRICAL CHARACTERISTIC
    1. Total Resistance Range: 1KΩ<R<1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
    2. Resistance Taper: A/B/C 3. Rated Power: 0.05W 4. Maximum Operating Voltage: AC 50V/ DC 20V; 5. Residual Resistance: R1,2≤10Ω; R2,3≤20Ω 6. Insulation Resistance: 100MΩ 1 Minute at DC 100V 7. Dielectric Voltage: 1 Minute at AC 250V
    Three,ENDURANCE CHARACTERISTIC
    1. Rotational life: 10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

    About Uchi Electronics Co., Ltd.
    Uchi Electronics specializes in manufacturing high-quality electronic components including high-power resistors, wire-wound potentiometers, trimmer potentiometers, and precision potentiometric devices. With advanced production facilities and professional R&D teams, our products meet international quality standards and are exported to over 30 countries worldwide.
    Uchi Electronics production facility
    Shipping Options
    We offer multiple shipping methods including express mail service, DHL Express, UPS, and FedEx to ensure safe and efficient delivery of your products.
    Shipping and packaging process
    Frequently Asked Questions
    Are you a factory or a trading company?
    We are a factory offering direct factory pricing without middlemen. We provide professional technical support and accept customized OEM & ODM orders.
    Could you provide samples?
    Samples are available upon request. Contact us to arrange sample delivery after placing your order.
    Can your product be customized?
    We accept OEM and ODM orders with varying customization requirements. Contact our customer service for specific details regarding minimum order quantities and pricing.
    What is your delivery time?
    Delivery times vary based on product quantity, production process, and model. We have multiple factories to handle simultaneous production and can accommodate urgent requests.
    Do you offer after-sales service?
    All products come with comprehensive after-sales support. Our team provides 24-hour assistance for any technical or quality issues.
